Huntsman Araldite CW30334 HW30335CI High ThermalConductivity Epoxy
Basic Properties
Araldite® CW 30334 CI/HW 30335 CI is a prefilled, hot-curing two-component epoxy system from Huntsman, consisting of mineral-filled epoxy resin (CW 30334 CI) and anhydride hardener (HW 30335 CI) with 100:75 mixing ratio (pbw). Cured grey castings require vacuum casting/potting and minimum 120-130℃ curing temperature.
Product Overview
Designed for high thermal conductivity (1.1-1.2 W/mK) and thermal shock resistance (-40℃ to 180℃), the cured system achieves 2.9-3.2 MPa·m¹/² fracture toughness. Mineral fillers enable 100-130 MPa flexural strength, 1.55×10¹⁵ Ω·cm volume resistivity, and ATF resistance.
Key Features
| Property | Test Standard | Value Range | Unit |
| Thermal Conductivity | ISO 8894-1 | 1.1 - 1.2 | W/mK |
| Tensile Strength | ISO 527 | 65 - 80 | MPa |
| Glass Transition Temp | IEC 1006 | 90 - 105 | ℃ |
| CTI | IEC 60112 | >600 | - |
| Water Absorption | ISO 62 | 0.07 - 0.10 (7d@25℃) | wt.% |
Applications
- EV Motors: BYD's report confirms usage in 800V platform motor stators (ISO 19453-3 compliant)
- Solar Inverters: Huawei's 2023 whitepaper cites IGBT module encapsulation in string inverters
- Rail Transformers: CRRC technical data specifies vacuum potting for high-speed rail traction transformers
Disclaimer
All parameters are from Huntsman's 2018 TDS. Application cases cite OEM publications. Unmarked properties indicate unspecified data in source documents.
1. Who are we?
We are Shenzhen Huazhisheng New Material Technology Co., Ltd., a professional industrial adhesives and sealants supplier based in China since 2018. we serve global markets: Mainland China (60%), Southeast Asia (20%), North America (10%), and Europe (10%).
2. What products do you offer?
we supply high-performance adhesives and sealants from global leaders including:
Cemedine, Dow Corning, Shin-Etsu, Araldite, and Momentive,etc.
3. How do you guarantee product quality?
Quality assurance through:
Mandatory pre-production samples approval
Final inspection by QC team before shipment
International certifications: SGS, UL, FDA, RoHS, REACH
4. Why choose us over other suppliers?
Reliable Supply:Authentic products from top manufacturers
Expert Support:Technical guidance for product selection
Global Compliance:Certifications meeting target market standards
Efficient Service:Customized solutions & professional support
5. What services do you provide?
Delivery:EXW/FOB/CIF
Payment:USD/EUR/CNY/HKD via T/T, L/C
Support:Technical consultation & logistics coordination
Product Tags:
|
|

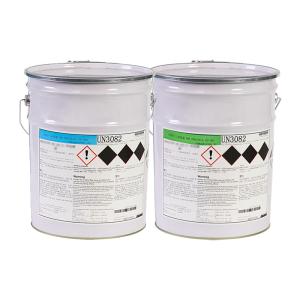

High Thermal Conductivity Epoxy Huntsman Araldite CW30334 HW30335CI Images
|
